Services de rectification de précision

Finish critical dimensions, flat faces, diameters, and bores after Usinage CNC or heat treatment. Weldo plans the grinding route around your material, stock allowance, functional fits, and surface requirements.

  • Size & Geometry Control
  • Fine Surface Finish
  • Contrôle sur la base de plans
Téléchargez votre plan de rectification

Finish the Surfaces That Control Fit

A dressed abrasive wheel removes controlled stock to bring functional surfaces to their final size, geometry, and roughness.

Grinding is often planned after milling, turning, or heat treatment, with allowance left on the faces, journals, or bores that require a final finishing operation.

  • Control flatness, parallelism, roundness, and dimensional relationships.
  • Refine bearing seats, sealing faces, and precision mating surfaces.
  • Finish hardened or wear-resistant components with material-specific wheel and coolant selection.
Rectification plane d'une pièce métallique

Grinding Processes for Different Surfaces

Choose the process by surface geometry, datum scheme, accessibility, required finish, and production quantity.

Meulage de surface

Meulage de surface

Finishes flat faces to control thickness, flatness, parallelism, and surface texture.

Pièces courantes : plates, dies, spacers, blocks, and precision mating faces.

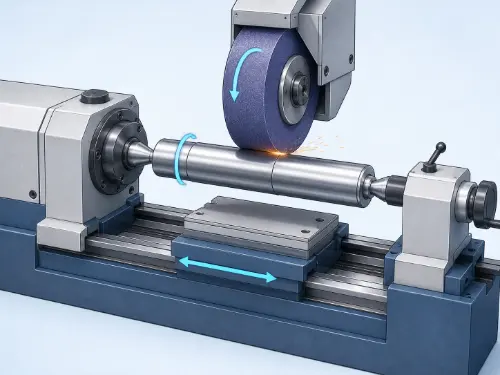

Rectification cylindrique

Rectification cylindrique

Finishes external diameters and journals with control of size, roundness, and datum relationships.

Pièces courantes : shafts, rollers, spindles, journals, and bearing seats.

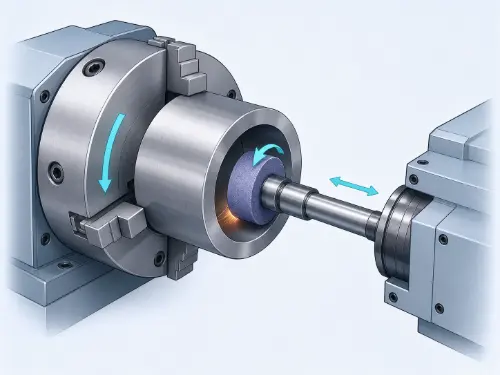

Meulage interne

Meulage interne

Refines bores and internal cylindrical features where size, form, and alignment are critical.

Pièces courantes : sleeves, bearing rings, bushings, and precision housings.

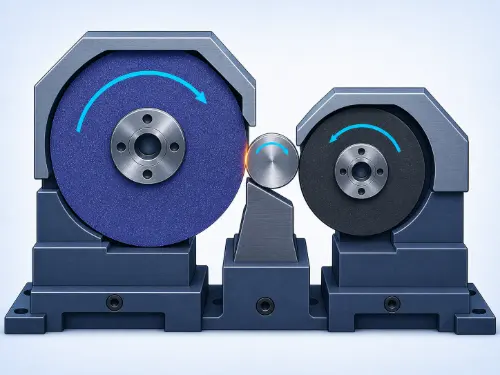

Meulage sans centre

Meulage sans centre

Supports external cylindrical surfaces between a grinding wheel, regulating wheel, and work rest.

Pièces courantes : pins, rods, tubes, and suitable repeat-production cylindrical parts.

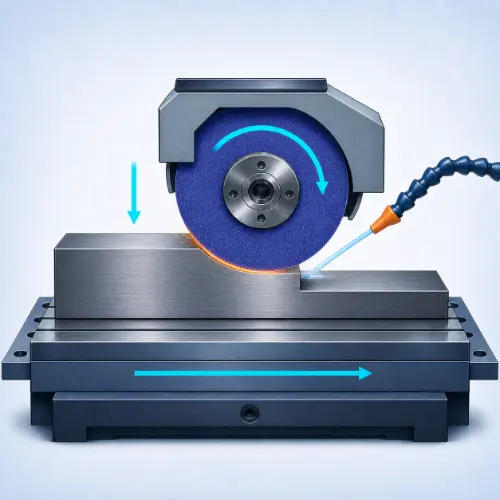

Creep-feed grinding

Rectification par avance lent

Combines a relatively deep cut with slow feed for reviewed profiles and material-removal requirements.

Process focus: wheel form, machine rigidity, power, dressing, and coolant delivery.

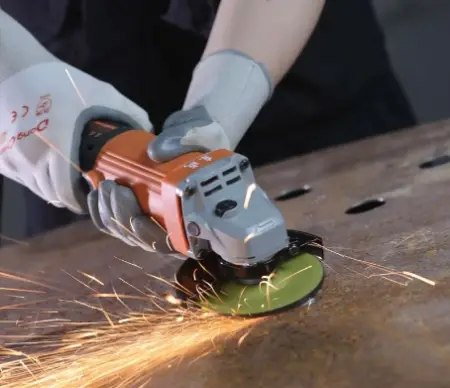

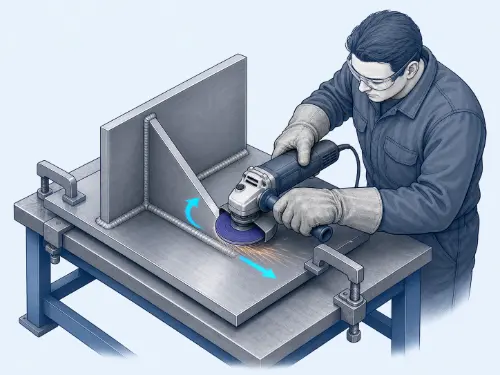

Manual grinding

Manual Grinding & Finishing

Localized deburring, weld blending, repair, and surface touch-up with task-specific acceptance criteria.

Typical work: accessible edges and local areas on low-volume or repair parts.

Precision capability figures apply to selected controlled grinding operations. Manual finishing is reviewed separately for its intended function.

Capacités de meulage et choix des meules

Capability is confirmed against the exact material, hardness, geometry, grinding allowance, and measurement method.

Capacité de dessin

Selected dimensional tolerances±0,001–0,01 mm*Feature-specific acceptance after engineering review.
Selected surface roughnessRa 0.1–0.4 µm*Confirmed by material, surface geometry, process, and agreed measurement conditions.
Géométrie contrôléeFlatness, parallelism, roundness, and cylindricity to drawing requirements.
Formes des pièces à usinerPlates, shafts, rods, bores, journals, and bearing surfaces.
Production scopePrototype, small-batch, and repeat-production grinding.

Grandes familles d'abrasifs courants

Aluminum Oxide
Common starting point for carbon, alloy, tool, and stainless steels, with grade-specific wheel selection.
CBN
Often selected for hardened ferrous materials when the machine, bond, and process suit the application.
Carbure de silicium
Suitable for many cast-iron, non-ferrous, and non-metal applications, subject to material and wheel specification.
Diamant
Commonly used for cemented carbide, technical ceramics, glass, and selected non-ferrous work.

Final wheel selection includes abrasive, bond, grit, grade, structure, speed, dressing, and coolant. Diamond is generally not the first choice for steel grinding.

*Planning references, not blanket guarantees. Tolerance, geometry, and roughness are reviewed as separate requirements and are not necessarily achievable together on every part.

Materials for Precision Grinding

The wheel, coolant, workholding, and stock-removal strategy must match the exact grade and supplied condition.

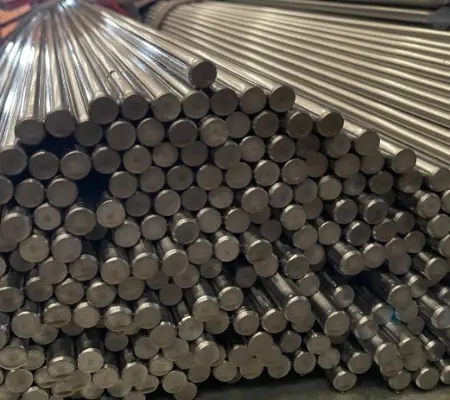

Carbon & Alloy Steel

Suitable for final sizing and geometry control on loaded components, including work after heat treatment.

View material details
Pièces courantes
Shafts, journals, gears, plates, and bearing seats.
Grinding focus
Confirm hardness, stock allowance, wheel condition, thermal input, and the datum route.
Inspection
Size, roundness or flatness, surface roughness, and specified surface-integrity checks.

Tool & Hardened Steel

Controlled abrasive finishing for hard tooling and wear surfaces with tight functional requirements.

View material details
Pièces courantes
Dies, punches, gauges, precision blocks, and hardened wear parts.
Grinding focus
Match aluminum oxide or CBN to the grade and process; manage dressing, coolant access, and burn risk.
Inspection
Critical geometry and roughness, with additional burn or crack testing when specified.

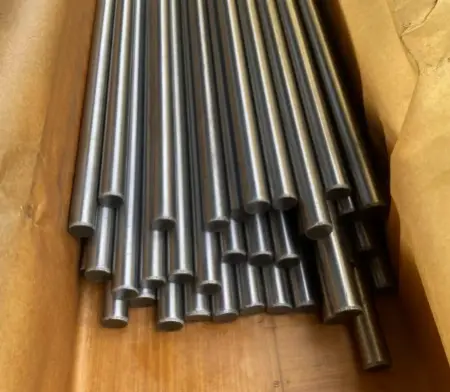

Acier inoxydable

Refines corrosion-resistant components where dimensional fits and functional surfaces require finishing.

View material details
Pièces courantes
Shafts, sleeves, valve parts, sealing faces, and precision hardware.
Grinding focus
Grade-specific control of wheel loading, heat, smearing, and surface contamination.
Inspection
Final size, surface condition, roughness, and any specified cleaning or passivation requirements.

Fonte

Ground reference surfaces and cylindrical features for machinery and wear-related applications.

View material details
Pièces courantes
Machine plates, guide surfaces, sleeves, and structural mating faces.
Grinding focus
Confirm the cast-iron grade, casting stability, abrasive choice, and edge condition.
Inspection
Flatness, parallelism, dimensions, and agreed texture or roughness.

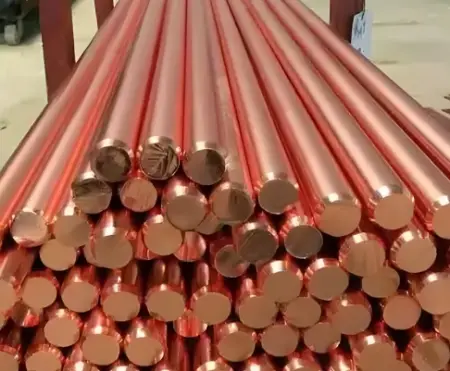

Métaux non ferreux

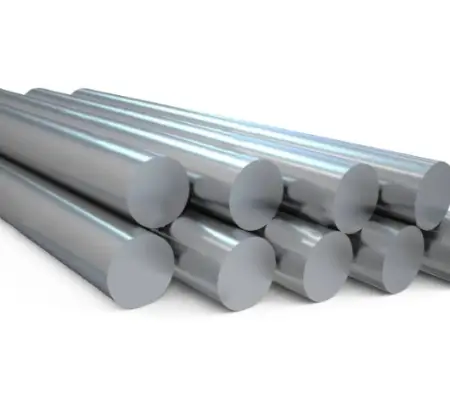

Selected aluminum, copper, brass, and bronze components can be ground with a material-specific setup.

View material details
Pièces courantes
Lightweight plates, conductive parts, bushings, and precision mating surfaces.
Grinding focus
Control loading, smearing, thermal expansion, clamping distortion, and compatibility of wheel and coolant.
Inspection
Free-state dimensions, temperature stabilization, surface condition, and edge quality.

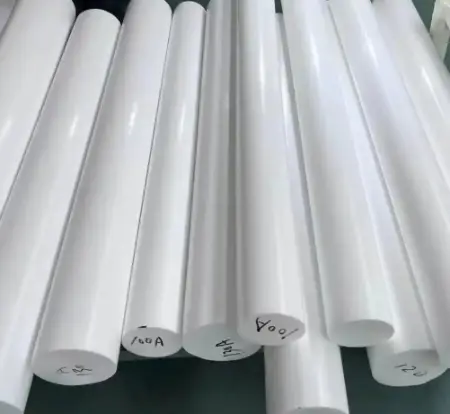

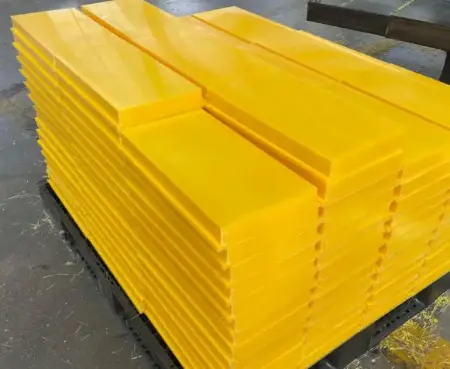

Plastic, ceramic, glass, and non-ferrous projects receive a separate feasibility review. Precision ranges for hardened steel should not be assumed to apply to other materials.

Contrôle de la chaleur, de la géométrie et de l'intégrité de la surface

A stable setup, correctly dressed wheel, controlled grinding conditions, and suitable measurement support consistent results.

Analyse du dessin

Define datums, fits, roughness, incoming condition, stock allowance, and inspection records.

Wheel & Setup

Match abrasive, bond, grit, dressing, coolant, and workholding to the part and material.

Contrôle des processus

Manage feed, passes, dressing intervals, and thermal input to reduce burn and distortion.

Vérification finale

Check critical dimensions, geometry, roughness, edges, and drawing-specific acceptance criteria.

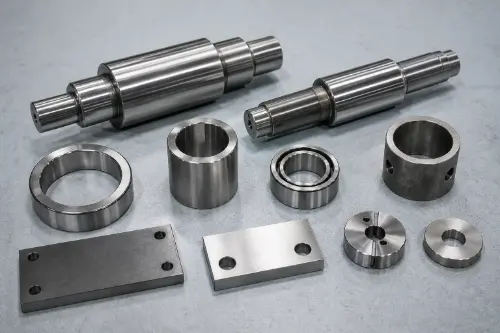

Metal component with ground functional surfaces

Functional Surface Verification

Inspect the surfaces that control fit, motion, location, and sealing using the method agreed for the drawing.

  • Size and fit
  • Flatness and parallelism
  • Roundness and cylindricity
  • Surface roughness and edges
Optical profile inspection of a precision component

Measurement Matched to the Feature

Optical inspection supports suitable profiles and edges. Dimensional and surface requirements use the appropriate calibrated equipment.

  • Profile and accessible edges
  • Mesure dimensionnelle
  • Roughness measurement
  • Additional tests by agreement

Request dimensional or CMM reports, roughness records, material certificates, and heat-treatment records during quotation. Burn, crack, or other surface-integrity testing must be specified where required.

Precision Grinding Questions

What determines grinding cost and lead time?

Material and hardness, incoming stock, grinding allowance, workholding, tolerance, finish, quantity, and inspection all affect the process and quotation. Heat treatment and secondary operations are included in the project review.

Should parts be ground before or after heat treatment?

Critical surfaces are often finish-ground after heat treatment, with suitable allowance left beforehand. The sequence depends on material, distortion, hardness, surface requirements, and the final datum scheme.

How much stock should be left for grinding?

There is no single allowance for every part. Size, material, heat-treatment movement, incoming geometry, workholding, and the selected grinding method determine the required stock.

Quelles sont les causes des marques de vibration lors du meulage ?

Common causes include imbalance, unsuitable dressing, vibration, unstable workholding, spindle condition, and incorrect process parameters. The machine, wheel, setup, and cutting conditions are reviewed together.

How is surface integrity checked?

Dimensional, geometry, roughness, and visual checks are matched to the drawing. Visual inspection alone does not establish freedom from thermal damage or microcracks; additional testing is agreed when required.

How is repeatability maintained across batches?

Consistent wheel specification, dressing, coolant, workholding, incoming condition, and measurement methods support repeatability. Critical features and inspection frequency are defined for the order.
