Услуги по ЧПУ-обработке магния | Weldo
Деталь из магниевого сплава, изготовленная на станке с ЧПУ

Magnesium CNC Machining Services

Custom magnesium parts made to drawing for lightweight housings, brackets, and structural assemblies. We match alloy, material condition, machining, and surface protection to the required strength, weight, service environment, and finished dimensions.

  • Low-Weight Alloy Options
  • От прототипа до производства
  • Отделка и контроль качества
Upload Your Magnesium Part Drawing

Magnesium Properties Depend on Grade and Condition

Low density makes magnesium attractive for weight-sensitive parts. Specific strength, damping, shielding behavior, and thermal performance depend on the alloy and the finished component design.

Плотность
1.74–1.85г/см³
Прочность на разрыв
200–380МПа
Предел текучести
90–300МПа
Удлинение
2–20%
Модуль упругости
44–45GPa
Теплопроводность
50–160W/(m·K)

Illustrative ranges cover selected engineering alloys and conditions. Confirm the full grade, product form, temper, test direction, and certified properties for the application.

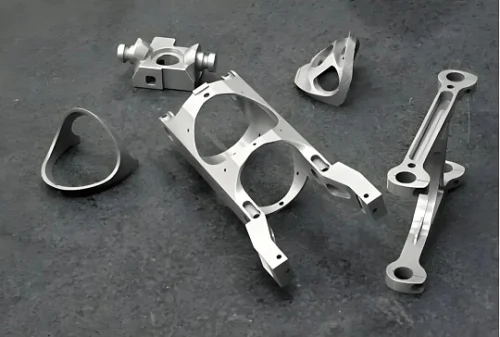

Custom machined magnesium components

Choose the Magnesium Alloy for the Part

Compare product form, load, operating temperature, corrosion exposure, and the required material condition.

AZ31B magnesium alloy stock

AZ31B

A wrought magnesium alloy used for lightweight sheet, plate, and extruded components. Formability, weldability, and strength depend on temper, thickness, and the selected production route.

Applications & machining notes
Product forms
Sheet, plate, and extrusion, subject to the required material specification and availability.
Типовые детали
Housings, panels, brackets, and other lightweight structural components.
Machining considerations
Confirm temper and grain direction, support thin features, and plan clamping and material removal to control movement. Forming and welding require suitable grade-specific procedures.
Требования к отделке
Specify corrosion exposure, connected materials, contact faces, coating thickness, and any required electrical continuity or masking.

Specify alloy, grade suffix, supplied and final conditions, product standard, and required material records. Include connected metals and electrical contact areas when planning corrosion protection, isolation, and masking.

Контроль качества магниевых деталей на основе чертежей

Review geometry, alloy condition, workholding, coating allowance, and inspection requirements before confirming capability.

Machining Reference Parameters

Precision-machining reference±0.01 mm*Confirmed for the specified features, geometry, material condition, and measurement plan.
Основные характеристикиС точностью до ±0,005 мм*Subject to engineering review and agreed acceptance conditions.
Обработанная шероховатостьRa 0.8–3.2 µm*Depends on tool access, alloy condition, surface geometry, and any additional finishing.
Thin-wall starting pointFrom 0.8 mm*Review height, unsupported span, support, clamping, and coating requirements.
Small-hole referenceFrom Ø0.8 mm*Confirm depth, access, chip removal, deburring, and inspection for the hole geometry.
Поддержка производстваPrototype to repeat ordersMaintain controlled drawings, revisions, material condition, and agreed inspection records.

Controls for Consistent Magnesium Machining

Cutting and Chip Control

Match sharp tools, engagement, and chip evacuation to the alloy and operation. Avoid rubbing, chip recutting, and uncontrolled heat.

Magnesium-Specific Handling

Plan chip segregation, collection, housekeeping, and ignition controls. Any cutting fluid must be suitable for magnesium and the complete handling route.

Надежное закрепление заготовки

Use suitable support, balanced removal, and controlled clamping to protect lightweight and thin-wall structures.

Edges and Finished Fits

Plan controlled deburring, coating buildup, masking, and inspection in the required finished condition.

*Planning references confirmed against the drawing. Precision, wall thickness, small holes, and roughness are assessed for each feature and should not be assumed achievable together.

Виды поверхностной обработки магниевых деталей

Select the complete finish system for corrosion exposure, wear, appearance, coating thickness, and electrical requirements.

Conversion-coated magnesium part

Химическое конверсионное покрытие

A thin conversion layer used for specified corrosion protection and paint adhesion. Define the chemistry, final system, and electrical requirements.

Matte surface texture reference

Окисление микродуговым методом

MAO/PEO forms a ceramic oxide layer. Specify thickness, sealing, roughness, wear or corrosion acceptance, and any protected contact surfaces.

Metallic surface finish reference

Безэлектродное никелирование

Requires a magnesium-compatible pretreatment and plating route. Agree coating thickness, adhesion, masking, and the finished dimensions.

Powder-coated surface reference

Порошковое покрытие

A colored barrier system applied over compatible pretreatment. Confirm cure conditions, coverage, coating thickness, and protected functional areas.

Specify mating metals, fasteners, wet exposure, and required electrical continuity. Plan corrosion protection and any galvanic isolation at the assembly level, with masking and final-fit allowances agreed before machining.

От анализа технологического процесса до окончательного контроля качества

Identify material, dimensional, and finishing requirements before production, then verify the agreed finished-part condition.

Machining process review

Анализ процессов

Confirm alloy, supplied condition, feature access, coating, and the agreed manufacturing route.

Контроль размеров на КИМ

Контроль размеров

Check critical bores, fits, datums, and dimensions against the controlled drawing.

Surface finish and quality inspection

Проверка окончания

Review surface condition, masking, and any specified coating-thickness or acceptance checks.

Предотгрузочный осмотр деталей

Выдача груза

Verify agreed records and protect functional features and coated surfaces during packing.

Magnesium Machining Questions

Which magnesium alloy should I choose?

Start with product form, load, operating temperature, corrosion exposure, and finish. AZ31B is commonly used in wrought sheet or plate parts, AZ91D is associated with die-cast components, and higher-strength or rare-earth grades address different structural requirements.

What needs special attention during machining?

Tool sharpness, chip evacuation, rubbing, support, and temperature control affect the part. Magnesium also requires a defined process for chip collection, segregation, ignition control, cleaning, and any cutting-fluid use.

Do magnesium parts need corrosion protection?

Review the environment, mating metals, fasteners, and electrical contact requirements. Conversion coatings, PEO, plating, or organic coatings serve different purposes. Specify the complete compatible system and final acceptance requirements for the assembly.

Can tight fits be accepted after coating?

Yes, when coating thickness, buildup, masking, and inspection are defined in advance. Identify which features are accepted before finishing and which must meet the drawing in the final coated condition.
